CB750K
Service Manual
- Introduction & General Information

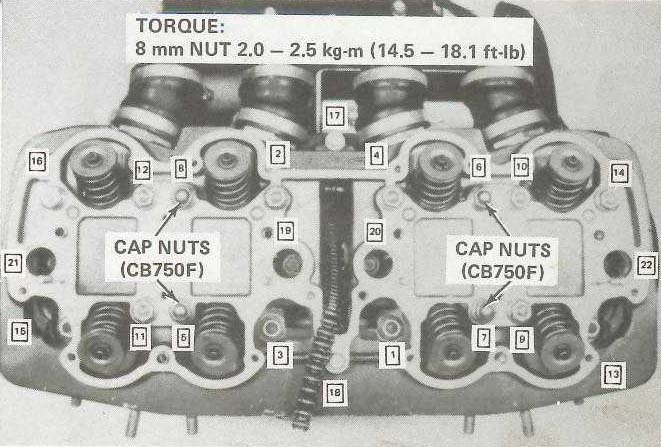

- Part 1: Engine Removal & Installation, Engine Mechanical
- Part 2: Clutch, Transmission, Fuel System, Ignition System
- Part 3: Charging System, Starting System, Battery
- Part 4: Steering, Front & Rear Suspension, Wheels, Tires, Final Drive, and Brakes
- Part 5: Body, Oil Tank, Air Cleaner, Exhaust, Body Electrical, Instruments
- Part 6: Wiring Diagrams, Engine Tune-up, Periodic Maintenance
- K1-K8 Supplement
General Technical Information
Wiring Diagrams
- CB750 K0 (1969-1970)

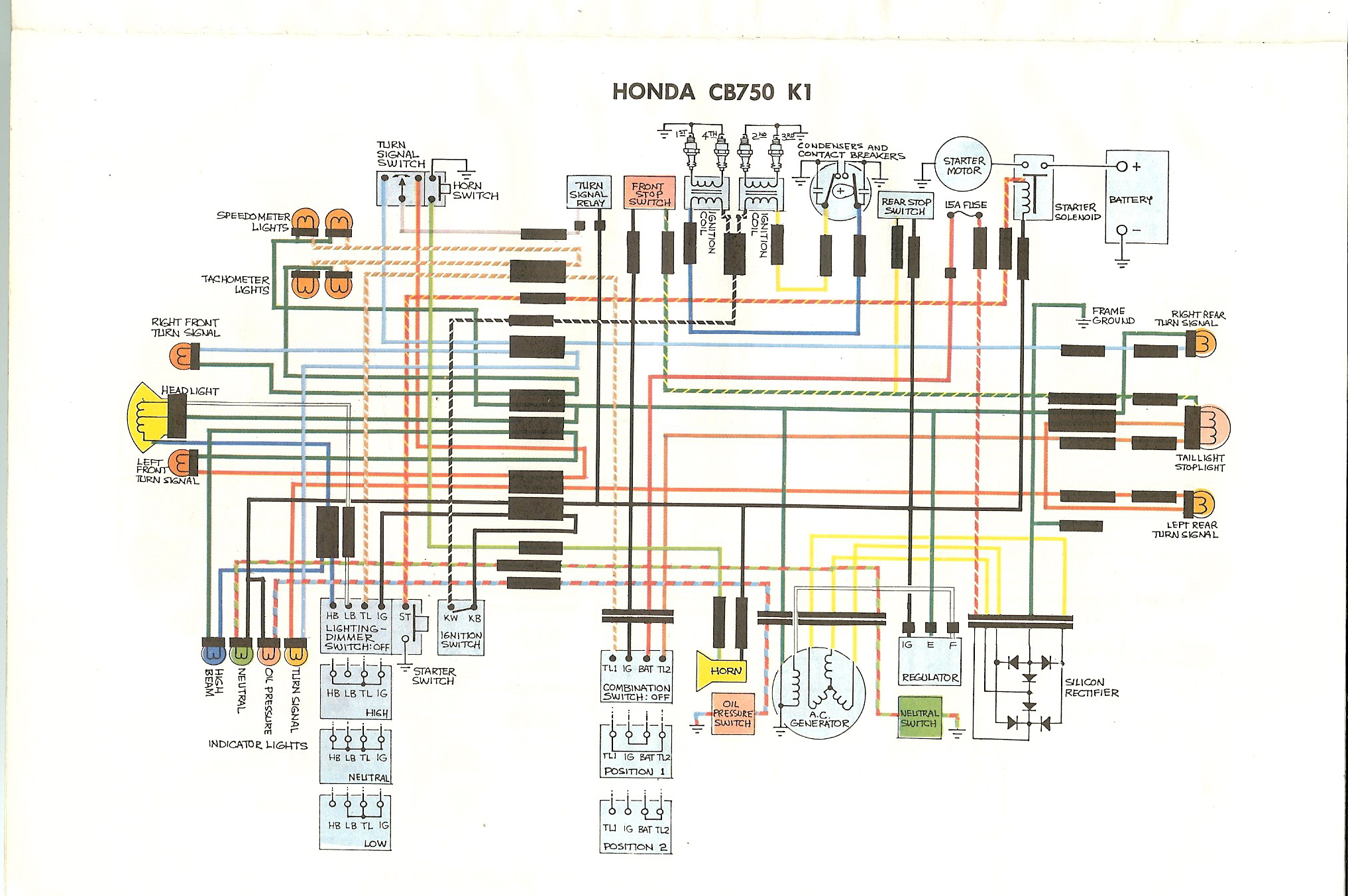

- CB750 K1 (1971)
- CB750 K1-K5 (1971-1975)

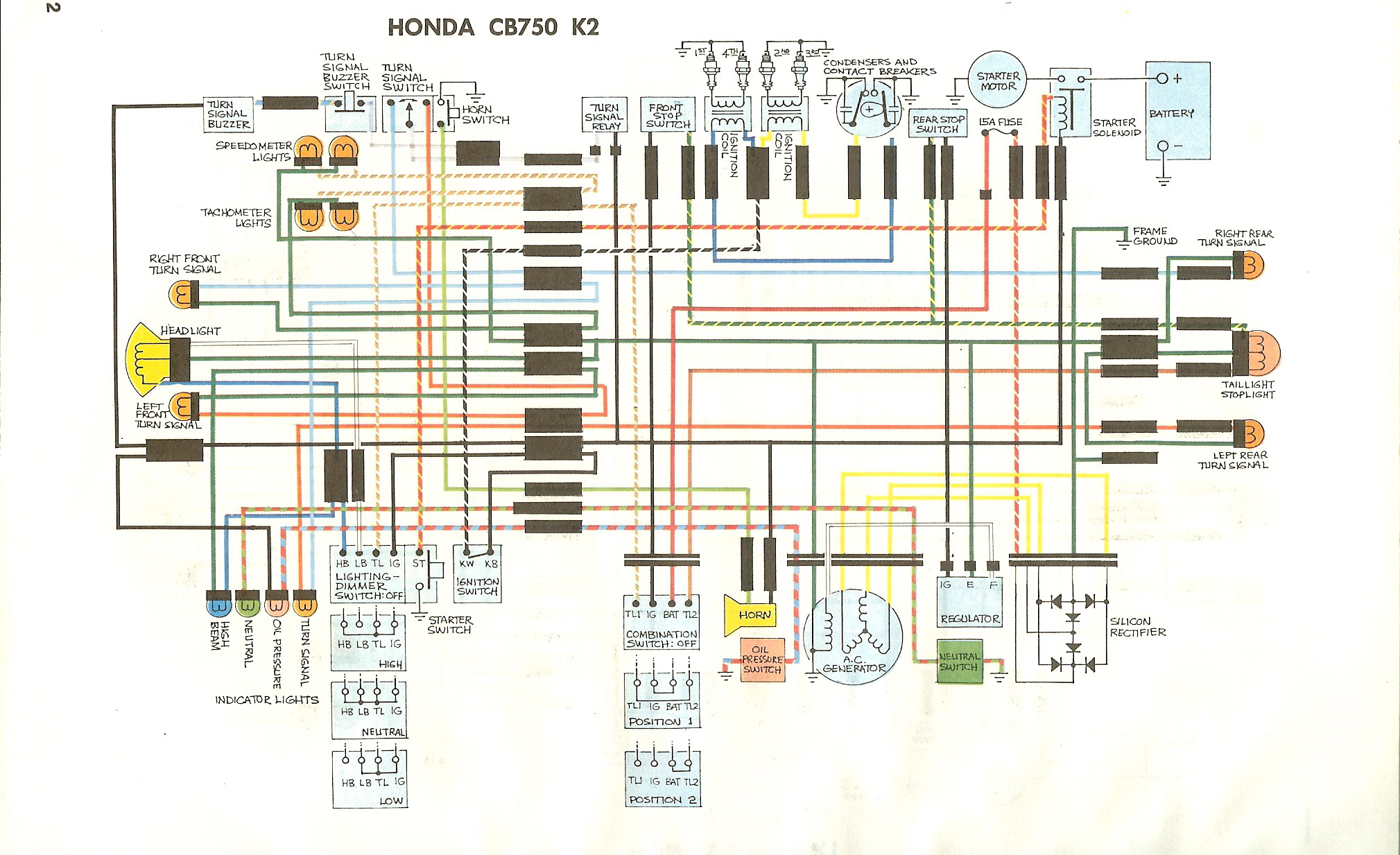

- CB750 K2 (1972)

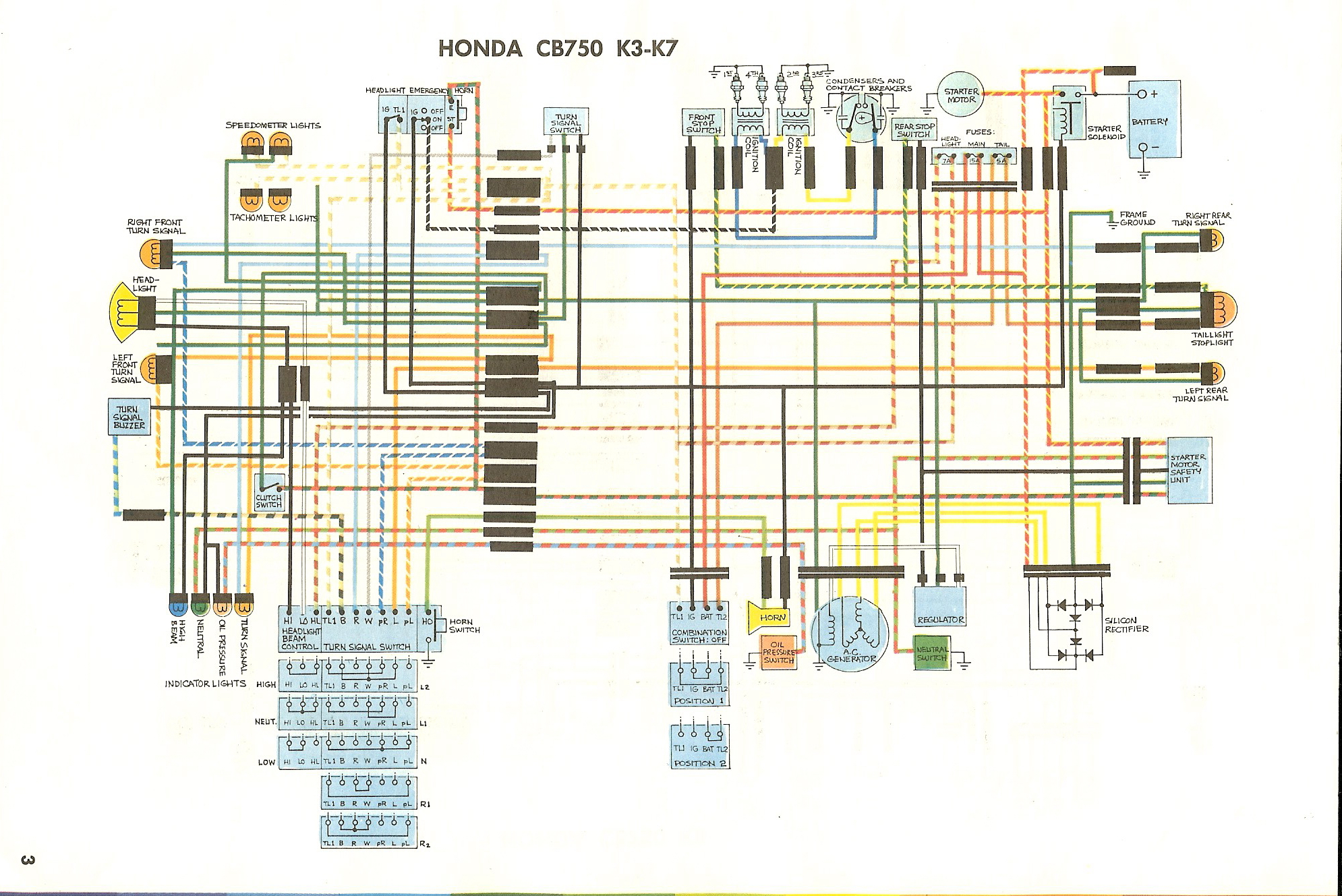

- CB750 K3-K7 (1973-1977)
- CB750 K6 (1976)
- CB750 K7 (1977)

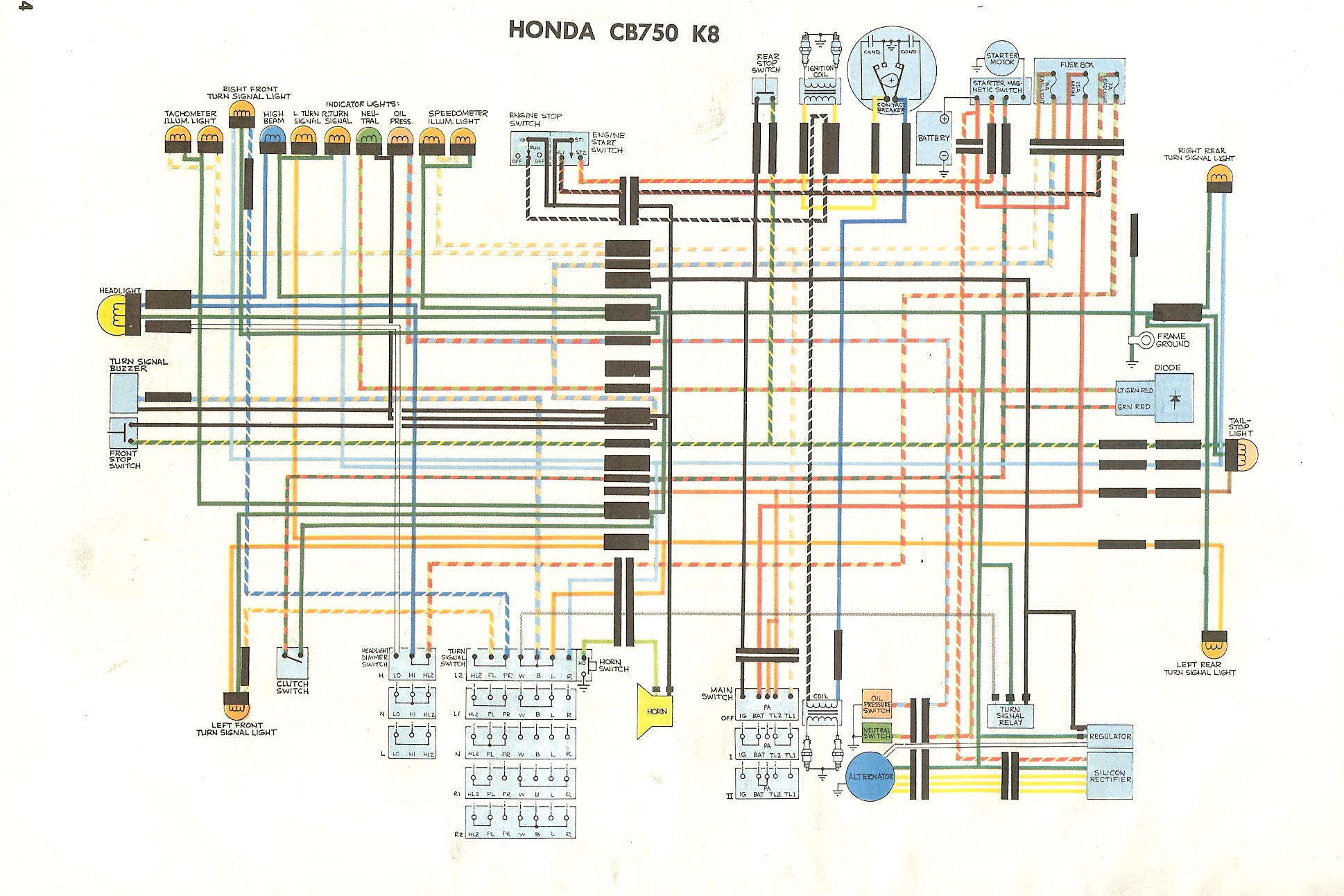

- CB750 K8 (1978)
- CB750K - US

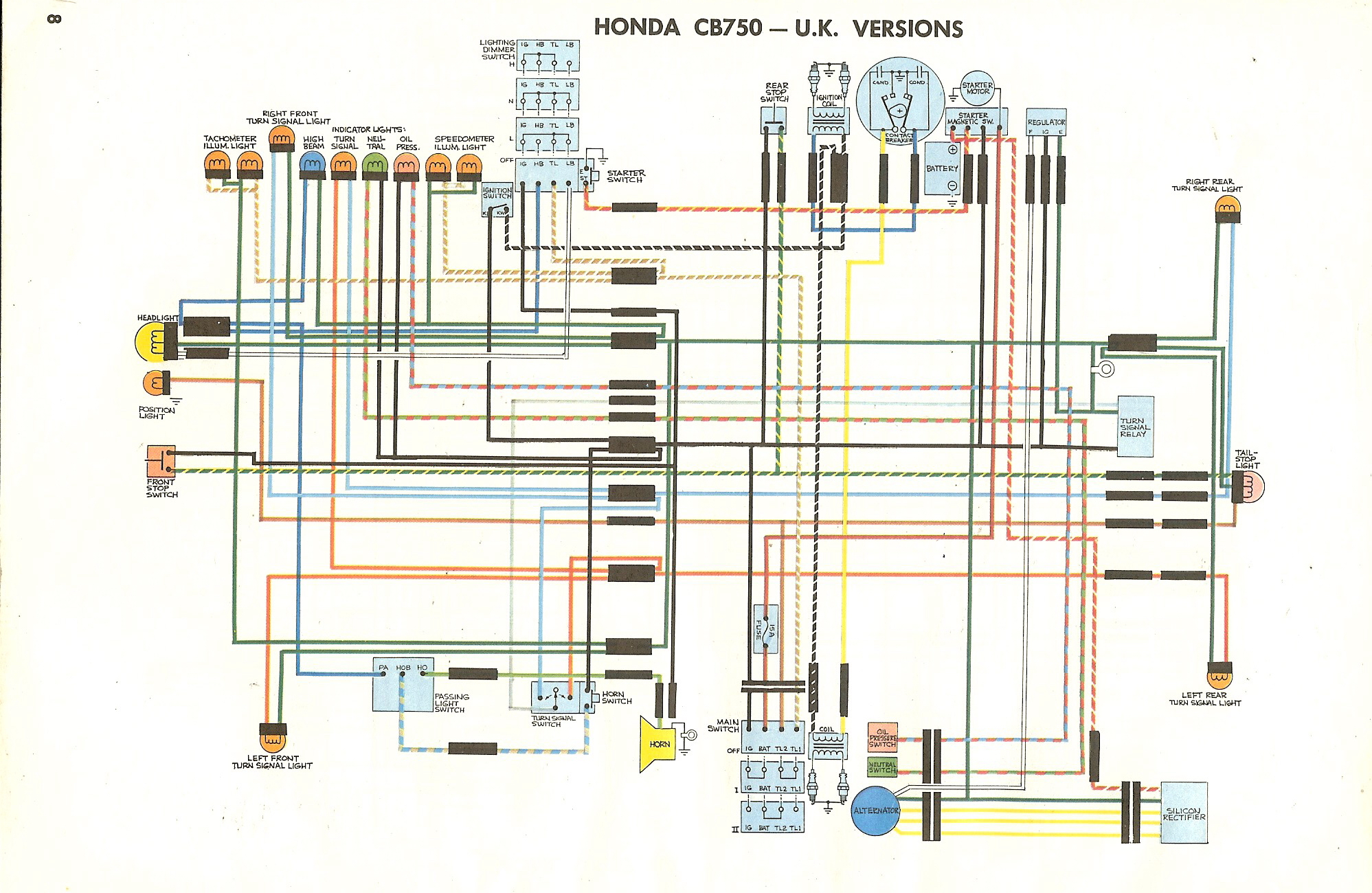

- CB750K - UK
- CB750K - France
- CB750K - Germany
